Shelly energy metering

In order to improve the accuracy of data statistics, users can choose to bind a shelly energy metering according to the difference of hard wiring, the shelly energy metering can collect and analyze the electricity consumption of the whole network or the whole zone or the whole group or just a single device, which can help users better collect and analyze data.

Currently, Koolmesh is compatible with the following shelly models:Shelly Plus 1PM,Shelly Plus 2PM,Shelly Pro 1PMV1,Shelly Pro Dual Cover PM ,Shelly Pro 2pmV1,Shelly Pro 3EM,Shelly Pro 4pm V2,Shelly Pro Dimmer,Shelly PM Mini Gen3,Shelly Pro EM-50.

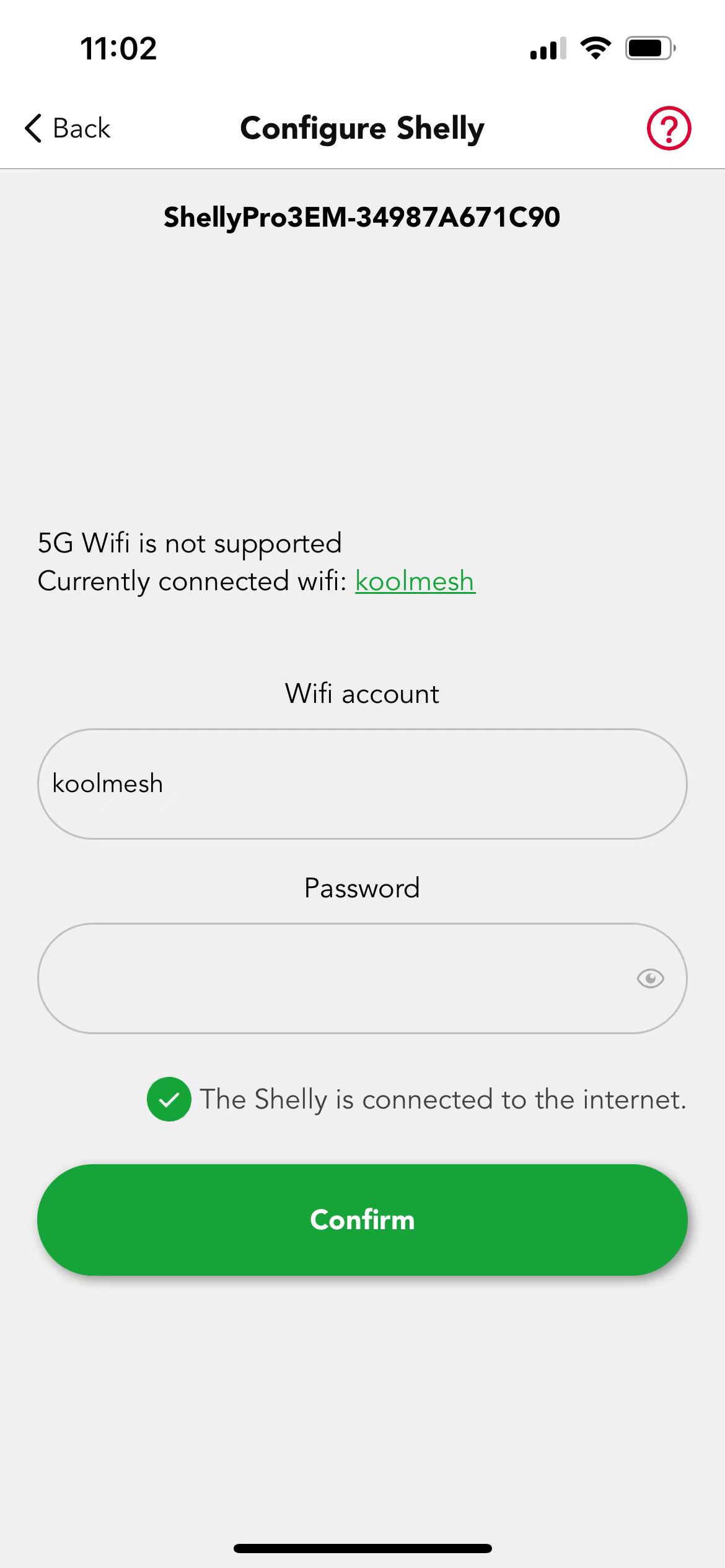

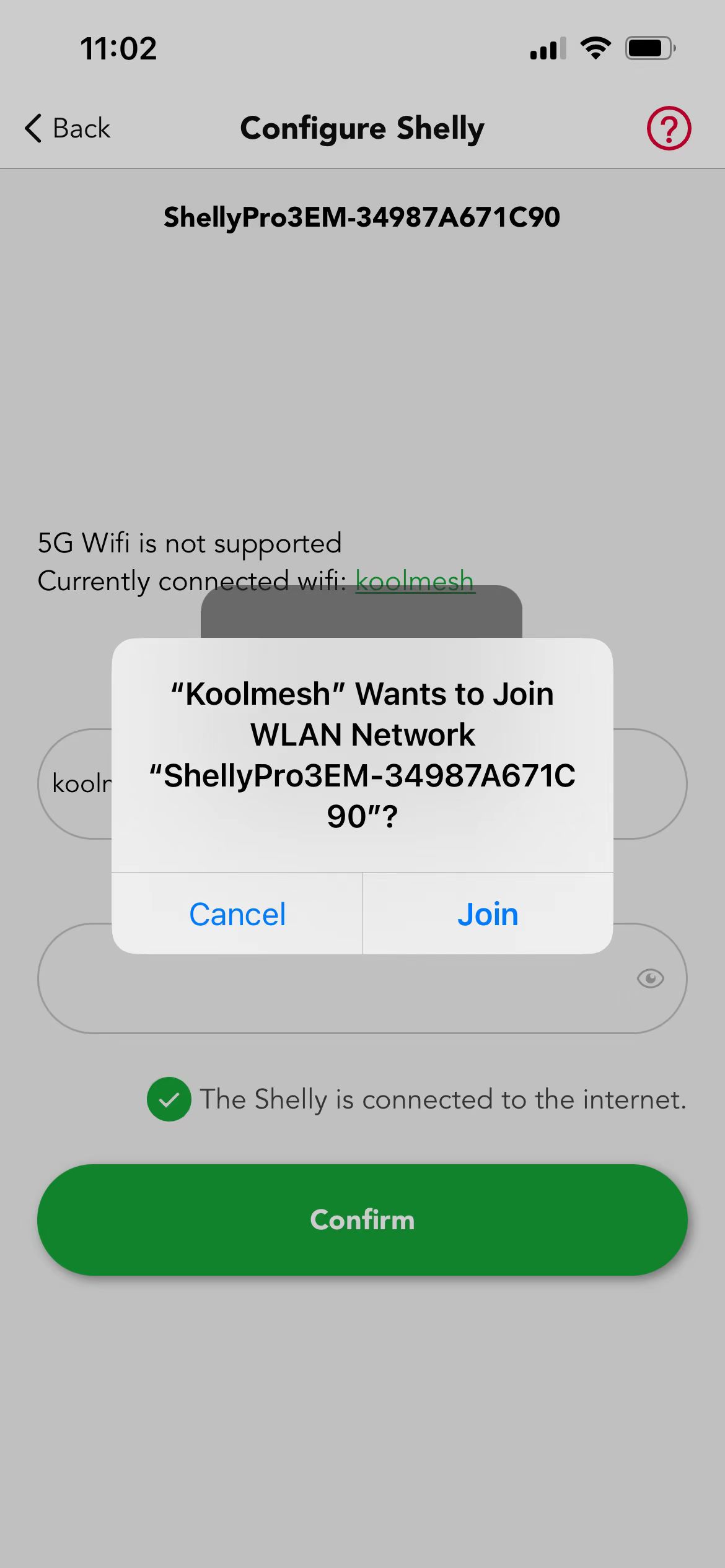

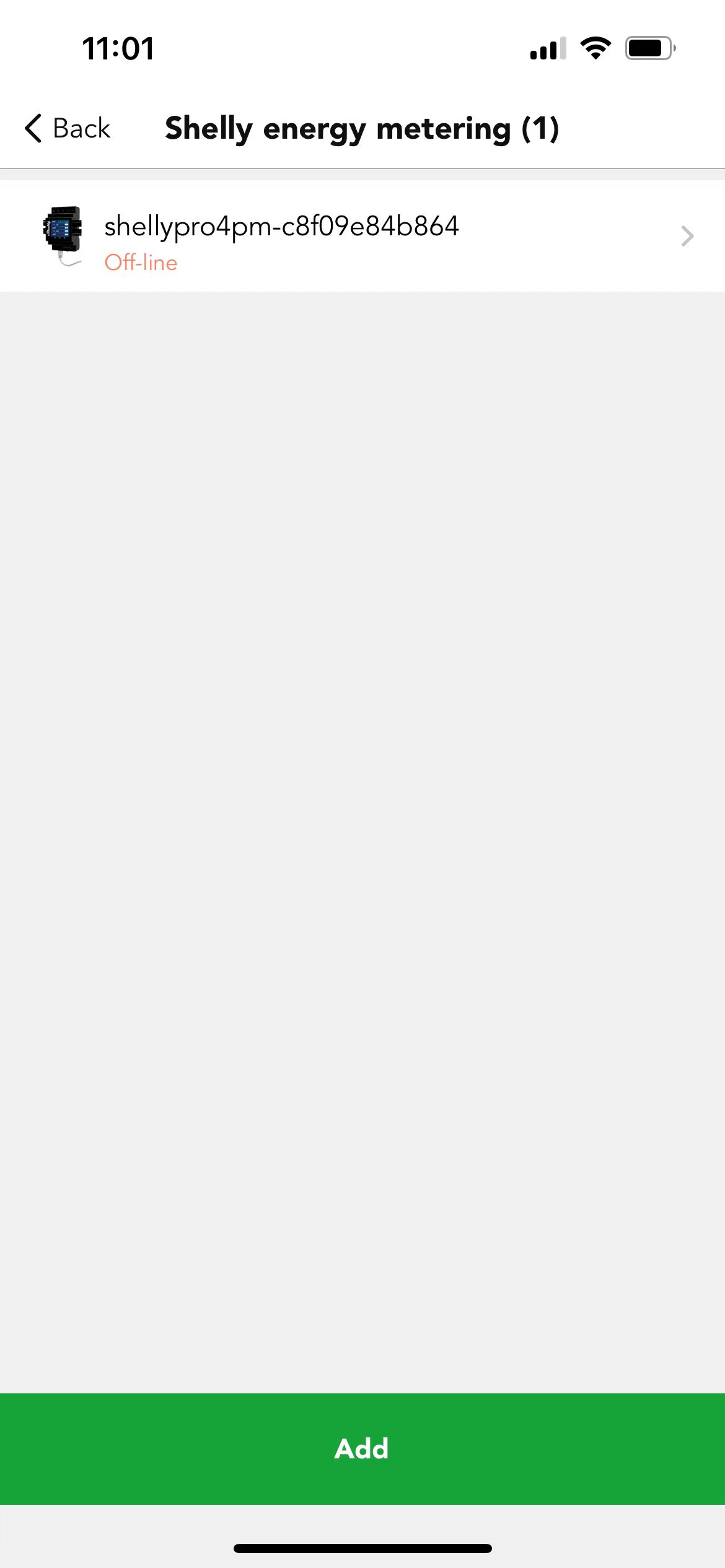

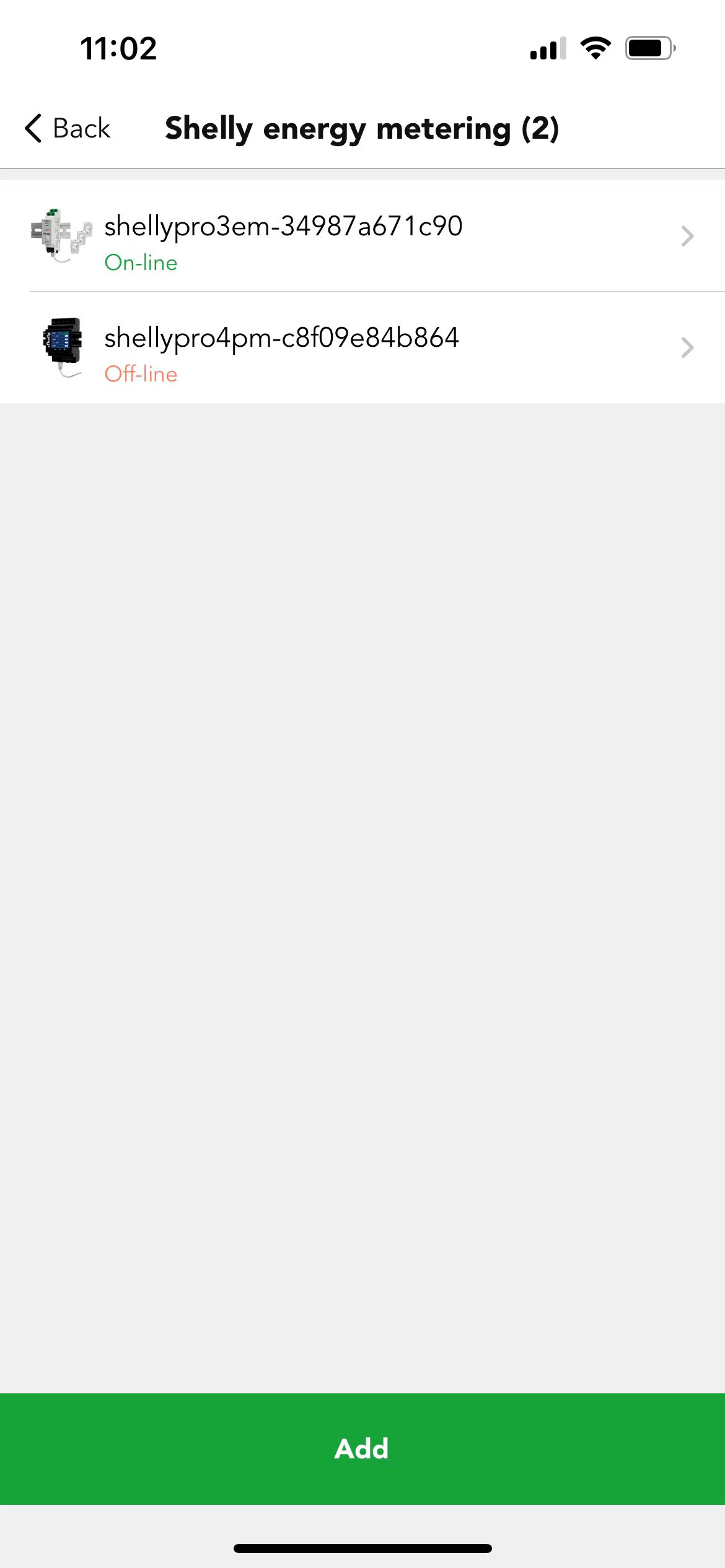

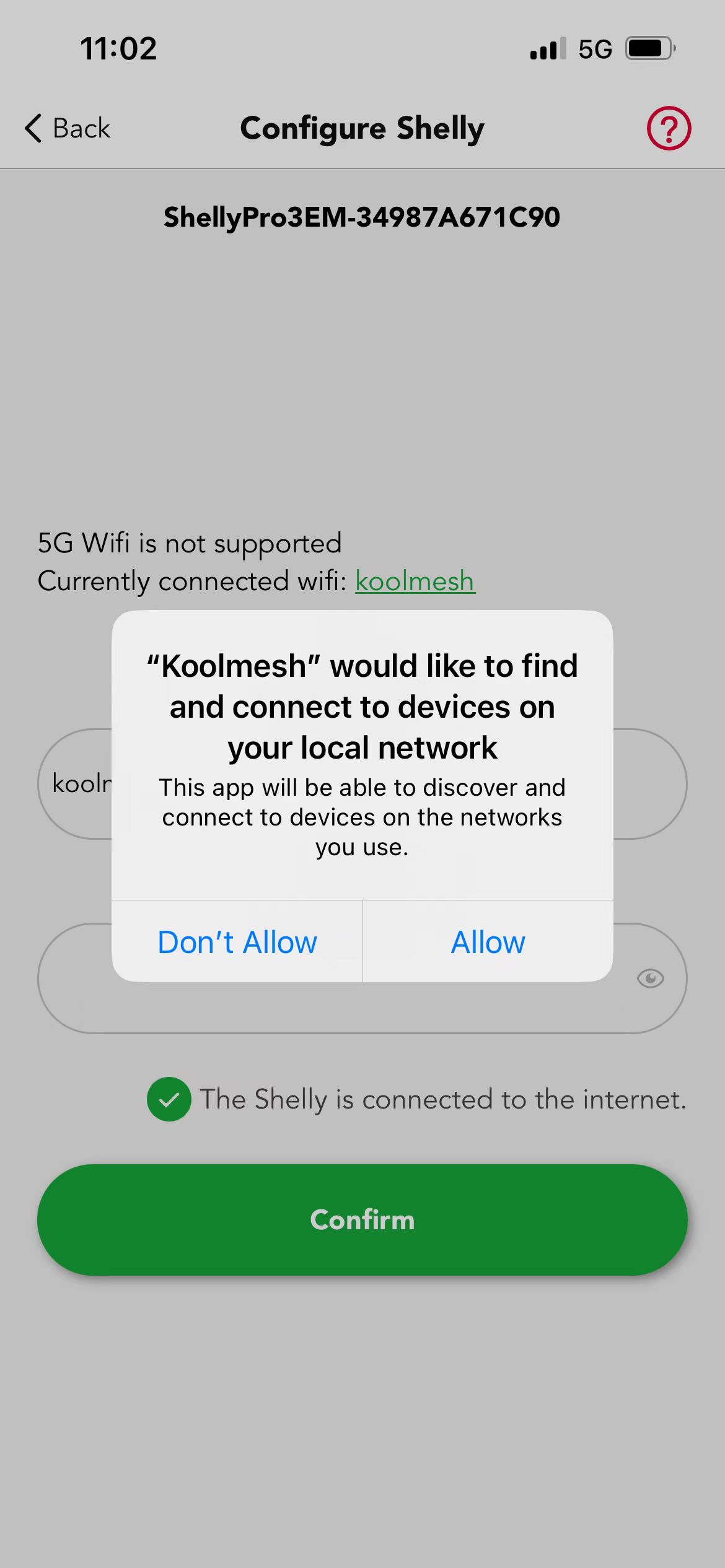

When a shelly energy metering is connected, we can add it to the corresponding network and configure it through the following steps.

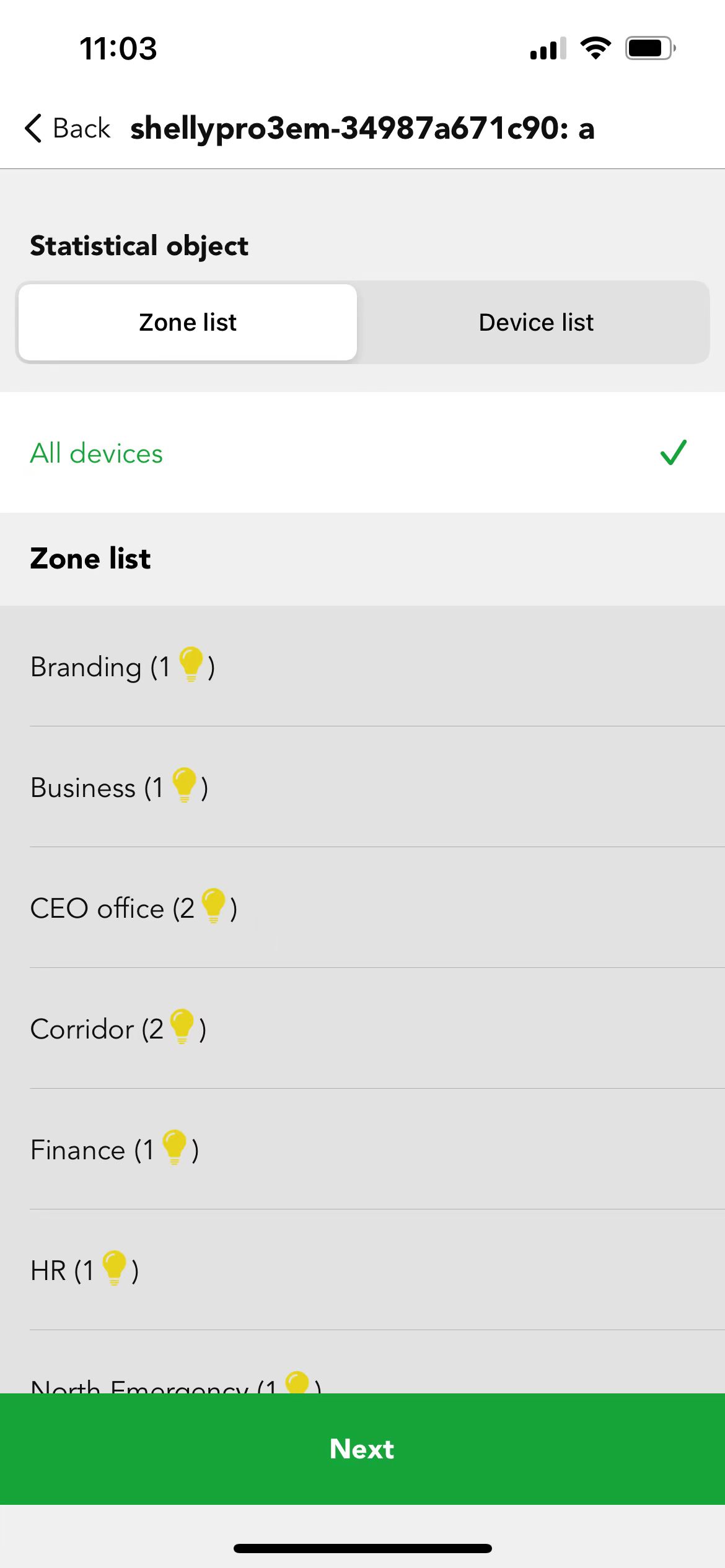

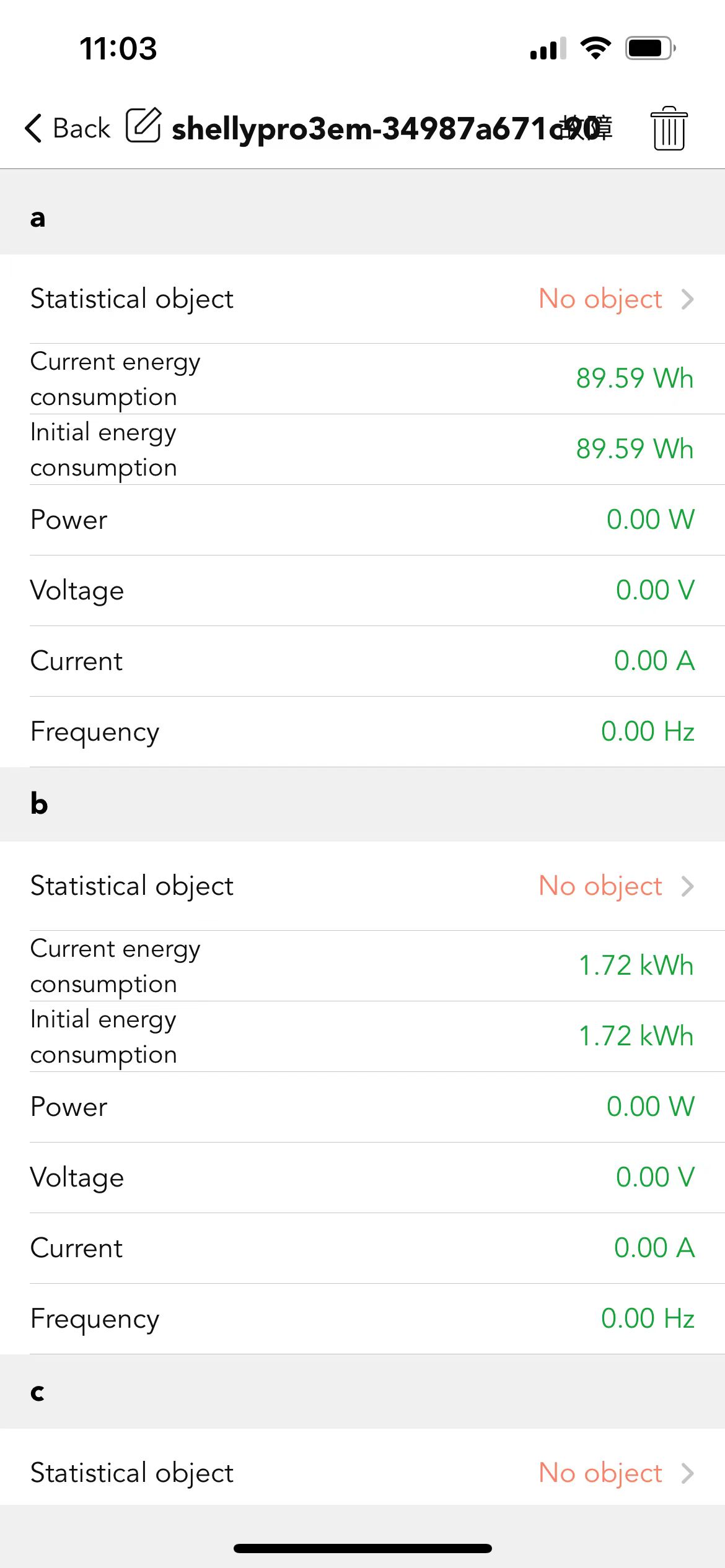

We also need to select the corresponding statistical object according to the hard wiring, so that, click on the corresponding meter, we can see the energy consumption statistics of the selected object.

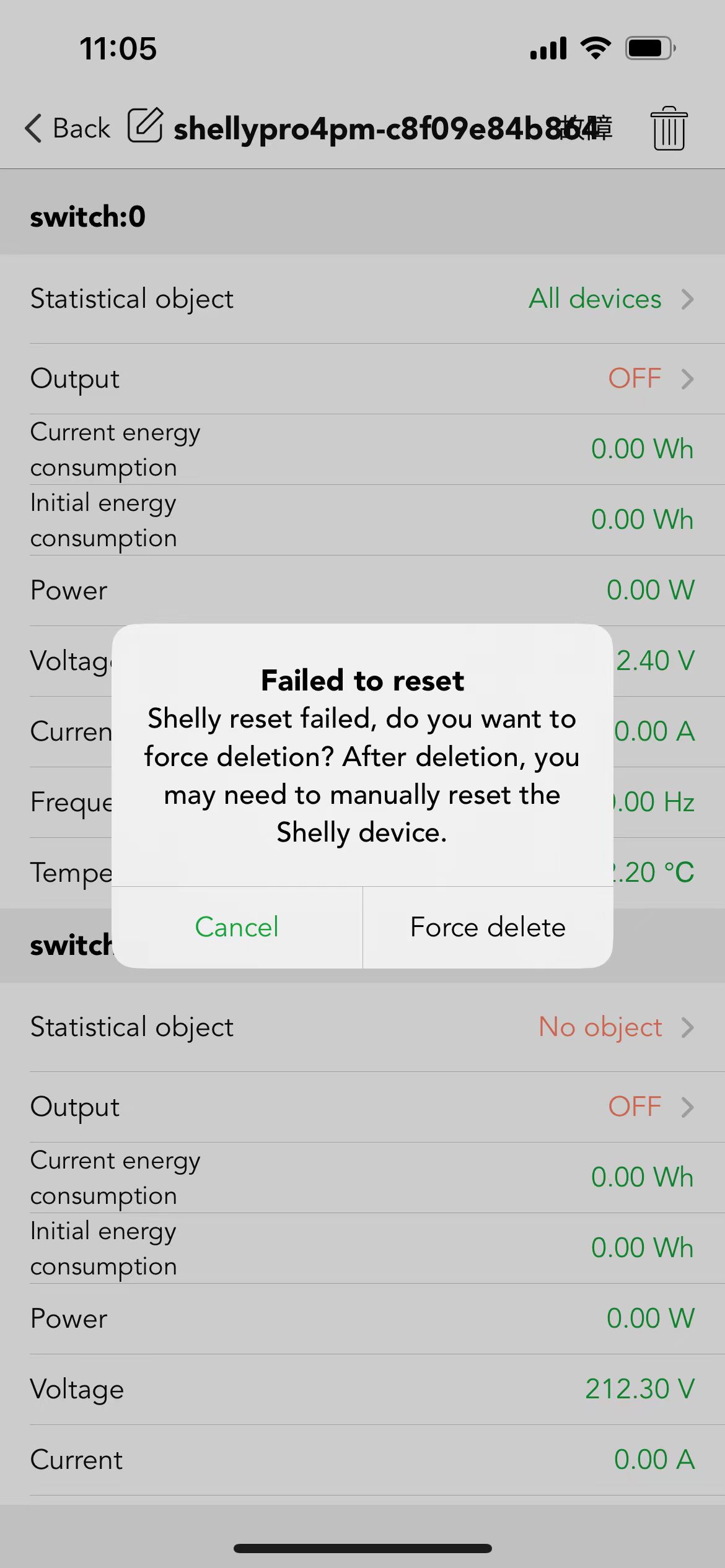

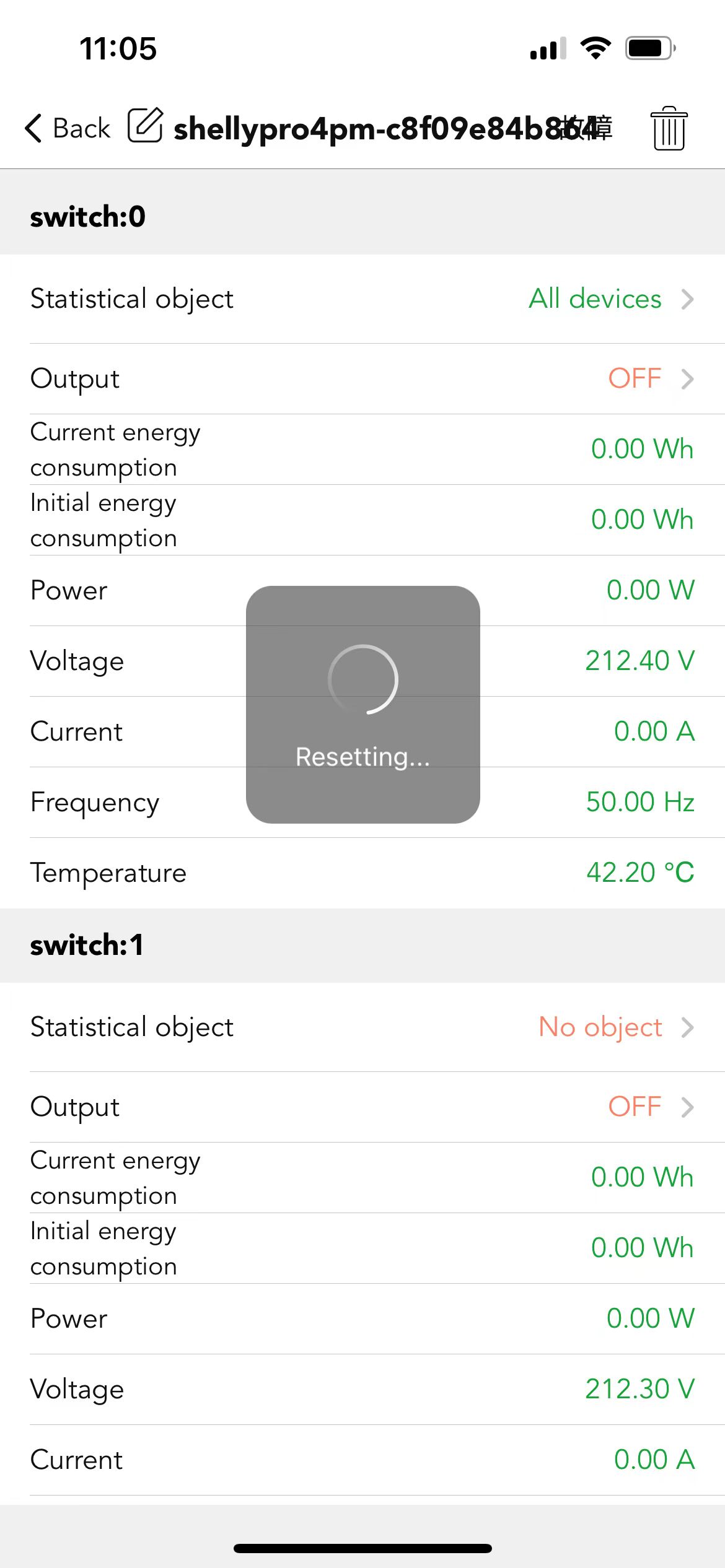

Click to delete the corresponding meter, but we must ensure that the meter is on-line. If you delete the meter in the off-line state, a prompt box will pop up on the interface "Failed to reset Shelly reset failed, do you want to force deletion? After deletion, you may need to manually reset the Shelly device." You can also choose force deletion, but the next time you want to add it to the network, you will not find the device, you need to manually reset to find it. Please refer to the following tips.

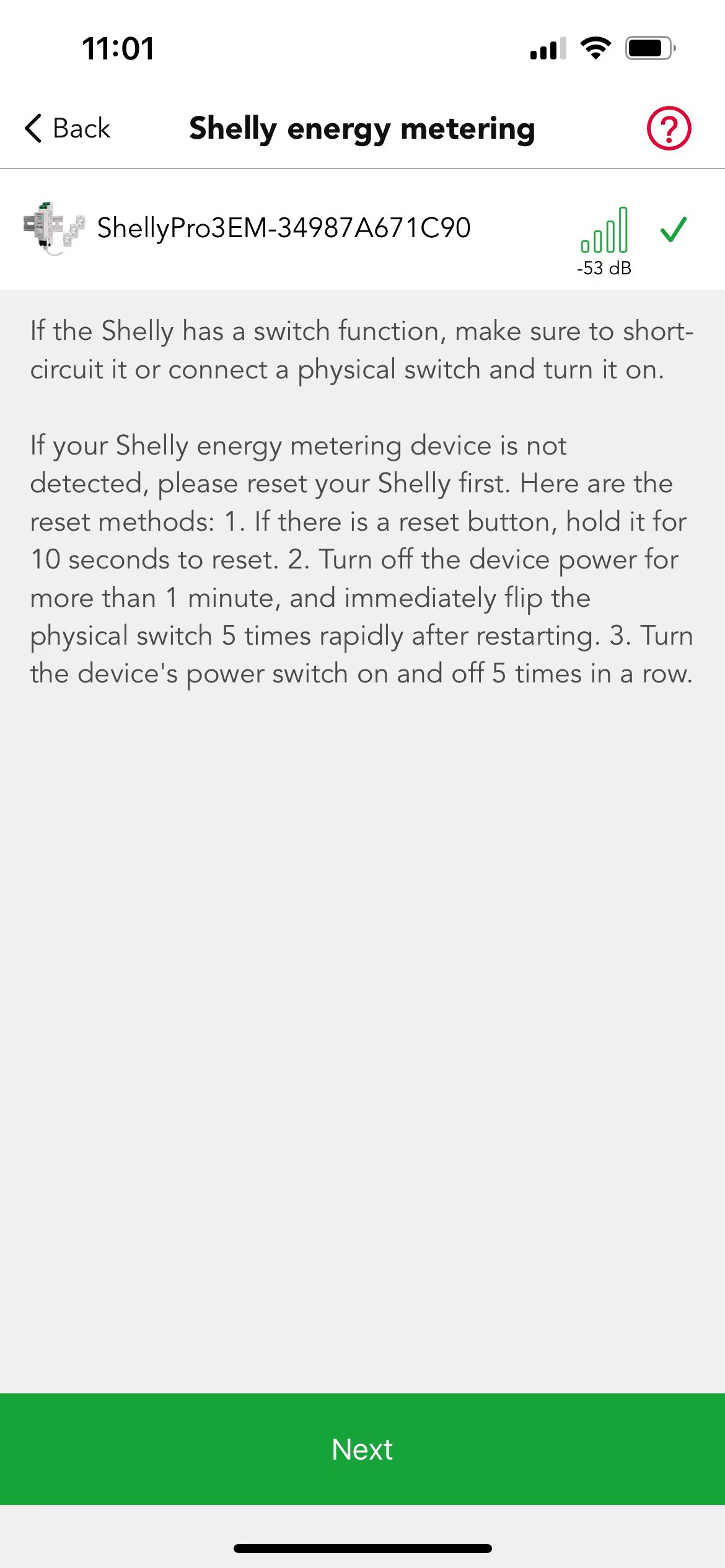

※ If the Shelly has a switch function, make sure to short- circuit it or connect a physical switch and turn it on.
※ If your Shelly energy metering device is not detected, please reset your Shelly first. Here are the reset methods:
1.If there is a reset button, hold it for 10 seconds to reset.
2.Turn off the device power for more than 1 minute, and immediately flip the physical switch 5 times rapidly after restarting.
3.Turn the device's power switch on and off 5 times in a row.
